How to Choose the Right Metering Ball Valve?

Time:2026-09-09 Author:Aria
0%

Choosing the right Metering Ball Valve begins with the fluid, not the product catalogue. Engineers must examine viscosity, temperature, pressure, flow range, and chemical compatibility before comparing models. A valve handling clean water may fail quickly with abrasive slurry or corrosive chemicals.

Béla G. Lipták, a respected process-control engineer, wrote, “The control valve is the final control element in a control loop.” His observation remains important when selecting a Metering Ball Valve for accurate, repeatable dosing. The valve must respond predictably, even when the system experiences pressure changes or frequent cycling.

Look closely at the details. A small bore can improve low-flow control, while an oversized valve may create unstable adjustment. Seat material matters. Stainless steel, PTFE, PEEK, and ceramic options behave differently under heat, friction, and chemical exposure. Actuation also deserves attention. Manual handles suit simple laboratory work, but pneumatic or electric actuators may provide better repeatability in automated systems.

Real installations often reveal what specifications hide. A valve can perform well on a test bench, then struggle when particles settle in the line. That possibility should not be ignored. Consider connection type, cleaning access, leakage performance, calibration needs, and available replacement parts.

There is no universal best valve.

The correct choice balances precision, service life, maintenance, and total operating cost. This guide explains how to compare those factors clearly, while acknowledging an uncomfortable truth: even experienced teams sometimes select a valve by size alone. That shortcut can produce inconsistent dosing, premature wear, and avoidable downtime.

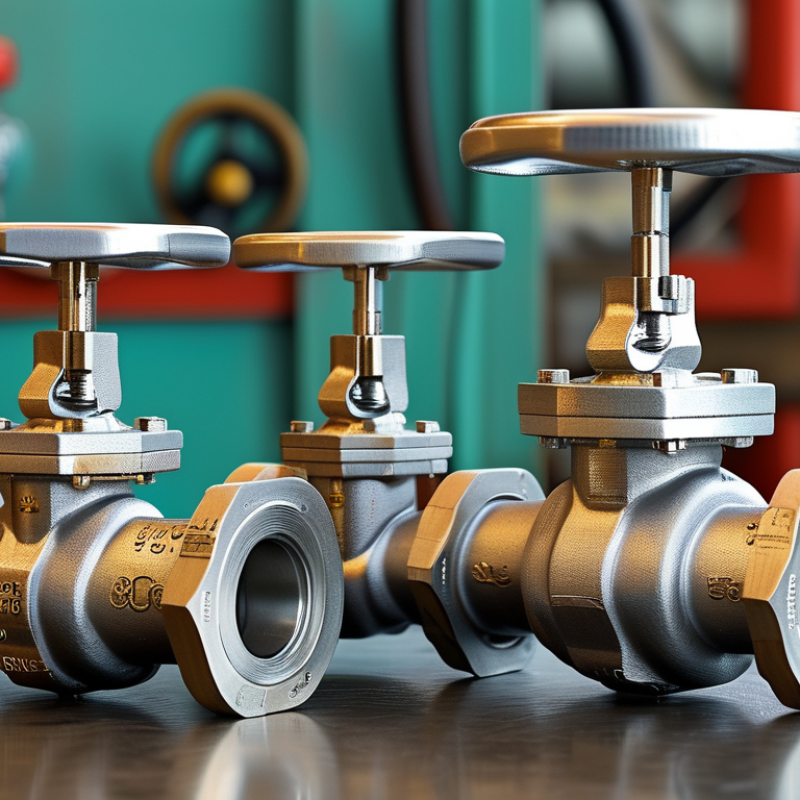

How to Choose the Right Metering Ball Valve?

What Is a Metering Ball Valve and How Does It Work?

How to Choose the Right Metering Ball Valve?

What Is a Metering Ball Valve and How Does It Work?

A metering ball valve controls liquid or gas flow through a rotating, precision-shaped ball. Unlike a basic isolation valve, it is designed for repeatable adjustment. Turning the stem changes the ball opening and alters the available flow area. Pressure difference pushes the medium through the port. Viscosity, temperature, and upstream pressure still affect the result.

A practical selection begins with the medium. Water, solvents, slurry, and compressed gas need different seat and body materials. A small handle movement should create predictable flow changes. A V-port or characterized ball often provides finer control than a standard full-bore ball. Check the valve’s flow coefficient, pressure rating, temperature range, and connection size. Do not select by pipe diameter alone.

The broader industrial valves market was valued at roughly US$78 billion in 2023, according to Grand View Research’s 2024 market analysis. That figure covers many valve types, not metering models specifically. It shows the scale of the equipment sector, but it does not prove control accuracy. ISO 5208 focuses on pressure testing and leakage acceptance, while actual metering performance needs calibration data. In field testing, I would record flow at several handle positions and repeat the test. Small valves can be surprisingly sensitive. A neat specification sheet may still hide unstable low-flow behavior.

How to Identify Your Flow Control and Fluid Compatibility Needs

How to Choose the Right Metering Ball Valve?

Choosing a metering ball valve starts with understanding the fluid, not the pipe size. Identify whether the medium is water, oil, gas, slurry, or a chemical solution. Record its viscosity, temperature, pressure, and suspended particles. These details affect ball movement, sealing, and repeatability. A valve that works smoothly with clean water may perform poorly with thick fluid.

Define the required flow range and control accuracy. Check the minimum and maximum flow rates, then compare them with the valve’s usable adjustment range. Oversizing often causes unstable control, especially at low flow. Review the flow coefficient, port size, and actuator response. Also inspect wetted materials and seal compatibility. Confirm resistance against swelling, corrosion, and temperature changes. A compatibility chart helps, but it should not replace testing with the actual fluid.

Tips: Test a small sample under operating conditions. Measure leakage, response time, and repeatability. Keep a record of pressure and temperature. Do not trust nominal ratings alone. A clean spreadsheet can still mislead when the fluid changes during production. In one practical review, the selected valve met the pressure rating but struggled with a viscous medium at startup. That missed detail mattered. Allow a safety margin, and ask the supplier for material data, test results, and service limits before final selection.

Which Valve Materials, Sizes, and Metering Ranges Should You Choose?

Choosing the right metering ball valve starts with the fluid, not the pipeline drawing. Valve materials must tolerate the fluid’s chemistry, temperature, pressure, and cleanliness requirements. Stainless steel suits many demanding applications, while specialized plastics can work well with selected corrosive fluids. However, compatibility charts are only a starting point. Concentration and temperature can change the result.

Valve size should match the required flow and acceptable pressure drop. Do not select a valve only because its connection matches the existing pipe. An oversized valve may produce poor adjustment at low flow. An undersized valve can create excessive pressure loss and unstable operation. The metering range also matters. Compare the normal flow, minimum flow, maximum flow, and required control resolution. A valve that operates near its closed position all day may be technically suitable but difficult to control accurately.

Tips: Leave practical adjustment room above and below the expected flow. Check the manufacturer’s flow coefficient data, sealing material, pressure rating, and temperature limits. Test the valve with the actual fluid when accuracy is critical. Small details matter.

A useful selection review should include real operating conditions, not only design values. Flow may vary during startup, cleaning, or seasonal temperature changes. I have seen projects choose a narrow metering range because it looked efficient on paper. Later, the process needed a wider range. That decision required unnecessary adjustment work. Recheck the assumptions before ordering, especially when the fluid contains particles or changes viscosity.

How to Compare Actuation Methods, Accuracy, and Pressure Ratings

Choosing the right metering ball valve starts with the actuation method. Manual handles suit infrequent adjustments and simple installations. They also give direct tactile feedback. For repeatable dosing, pneumatic or electric actuation usually performs better. Pneumatic units respond quickly, but they need clean, regulated air. Electric actuators simplify remote control, though their response can be slower. Check the required cycle rate, control signal, and available space before choosing.

Accuracy depends on more than the valve’s advertised resolution. A small stem movement may not produce an equally small flow change. Measure the actual fluid, temperature, viscosity, and downstream pressure. A valve that meters water well may behave differently with oil or a chemical solution. I prefer testing several setpoints across the working range. Keep records. Calibration drift can appear after thousands of cycles, especially when seals wear or particles enter the seat.

Pressure ratings require careful interpretation. Confirm both the maximum working pressure and the pressure range during actuation. Temperature can reduce the safe rating. Sudden pressure changes may also damage the seat, even when the static pressure appears acceptable. Select compatible body and seal materials, then verify fittings and tubing ratings as a complete system. I have seen specifications compared in isolation, which created false confidence. That mistake is easy to repeat. Allow a practical safety margin, and recheck performance after installation.

How to Install, Calibrate, and Maintain a Metering Ball Valve

Installing a metering ball valve starts with matching its materials, pressure rating, and flow range to the application. I inspect the valve, tubing, seals, and threads before connecting anything. Damaged threads can create leaks later. Before installation, I flush the line to remove dust, metal particles, and cutting fluid. The valve should follow the marked flow direction when one is provided. I support nearby tubing so its weight does not stress the valve body. Avoid over-tightening. That small mistake can distort seals and restrict movement.

Calibration should use a clean fluid and a stable measuring method. With the valve fully closed, I check for unwanted flow and record the zero position. I then open the valve in small, repeatable increments while measuring the actual output. Small adjustments matter. A scale, graduated cylinder, or flow meter should match the required accuracy. In practice, the first reading is not always perfect. Temperature, pressure, trapped air, and fluid viscosity can change results. I repeat each measurement and mark the usable adjustment range. Never assume the dial position equals the true flow rate.

Maintenance is easier when records are kept. I inspect the handle, body, connections, and surrounding surface during routine checks. A slow leak often appears as staining before it becomes obvious. I clean external dirt with a suitable cloth and approved cleaning fluid. Abrasive tools may damage sealing surfaces. If operation feels rough, I stop forcing the handle and investigate contamination, pressure, or seal wear. A simple log of flow readings helps reveal gradual drift. Forgetting that step is common, and it weakens otherwise careful maintenance.

How to Choose the Right Metering Ball Valve? - How to Install, Calibrate, and Maintain a Metering Ball Valve
Category Selection or Service Factor Recommended Data or Typical Range Practical Guidance
Valve Selection Valve size Common nominal sizes: DN6 to DN50 (¼ to 2 in) Select the connection size to match the piping system, but verify the required flow capacity rather than sizing only by pipe diameter.
Flow-control requirement On/off isolation: standard ball valve; repeated throttling or fine dosing: characterized or needle-style metering valve A conventional ball valve is generally better for isolation than for highly precise continuous throttling.
Pressure rating Use the valve’s documented pressure-temperature rating; common industrial ratings include PN16, PN25, Class 150, or higher The allowable pressure decreases as temperature increases. Never exceed the lowest rating of the valve, fittings, tubing, or process equipment.
Process temperature Typical general-service range: approximately −20°C to 150°C, depending on body and seat materials Confirm the actual temperature range and thermal cycling conditions against the valve’s published material limits.
Body material Brass or carbon steel for compatible non-corrosive service; stainless steel for many corrosive, hygienic, or outdoor applications Check chemical compatibility with the fluid, concentration, temperature, pressure, and cleaning chemicals.
Seat and seal material PTFE for broad chemical compatibility; reinforced PTFE or PEEK for higher wear or temperature resistance; elastomers where chemical compatibility is verified Avoid selecting seals by temperature alone; permeation, swelling, abrasion, and chemical attack must also be evaluated.
Sizing and Performance Flow coefficient, Cv For liquids, approximately: Q = Cv × √(ΔP / SG), where Q is in US gal/min, ΔP is in psi, and SG is specific gravity Use the manufacturer’s rated Cv curve when available, especially at partially open positions.
Liquid pressure drop Recommended design practice: calculate the required flow at the expected operating pressure drop, not at the maximum line pressure Oversizing can make low-flow adjustment difficult; undersizing can cause excessive pressure loss and noise.
Gas service Use compressible-flow calculations that include inlet pressure, outlet pressure, temperature, molecular weight, and required flow Do not use the liquid Cv equation for gases without applying an appropriate compressible-flow method.
Rangeability A practical control range is often lower for a standard ball valve than for a dedicated precision metering valve For stable low-flow dosing, verify the valve’s measured flow curve instead of relying only on the nominal size.
Leakage performance Specify the required shutoff class or leakage rate; soft-seated valves can provide tighter shutoff than many metal-seated designs The required leakage limit should be stated in the purchase specification and verified by a documented test.
Installation Pre-installation inspection Check valve body, ball, stem, seats, threads, tube ends, and seals for damage or contamination Keep protective caps installed until immediately before assembly.
System isolation Depressurize, drain, purge, and electrically isolate the system where applicable Confirm zero pressure with a suitable gauge or test method before loosening any connection.
Flow direction Follow the body arrow or installation drawing; many two-way ball valves are bidirectional, but metering designs may have a preferred direction Install the valve so the handle, actuator, drain, and adjustment scale remain accessible.
Piping alignment Keep connected pipes or tubes aligned without forcing them into position External pipe stress can distort the body, increase operating torque, and cause leakage.
Threaded connections Use a compatible thread sealant or sealing method; keep sealant away from the flow passage Tighten according to the valve and fitting instructions. Do not use the valve body as a wrenching surface.
Initial pressure test Raise pressure gradually and inspect body joints, stem area, and connections for leakage Use a test pressure and duration permitted by the applicable standard and the valve documentation.
Calibration and Verification Calibration condition Use the actual process fluid when safe; otherwise use a documented substitute with known density and viscosity Record inlet pressure, outlet pressure, temperature, fluid density, valve position, and measured flow.
Zero or closed-position check With the valve closed, verify that measured flow is within the specified shutoff leakage limit Do not force the handle beyond the designed stop; excessive force can damage the seat or stem.
Multi-point flow check Measure at a minimum of 5 positions, such as 10%, 25%, 50%, 75%, and 100% open Allow the flow to stabilize at every point and repeat readings to identify hysteresis or sticking.
Instrument accuracy Use calibrated pressure and flow instruments with accuracy suitable for the required control tolerance As a general practice, the measurement uncertainty should be substantially smaller than the permitted process deviation.
Calibration record Document date, valve identification, test medium, test conditions, measured values, adjustments, and technician Create a repeatable valve-position-to-flow table or curve for future operation and troubleshooting.
Maintenance Routine inspection Inspect for external leakage, corrosion, damaged insulation, loose fasteners, and abnormal handle or actuator movement Inspection frequency should be risk-based; increase frequency for corrosive, abrasive, toxic, or high-cycle service.
Cleaning Flush the line when contamination, crystallization, or suspended solids may affect the ball or seat Use cleaning agents compatible with the body, seat, seal, and process fluid.
Lubrication Lubricate only when permitted by the valve design and process requirements Use a lubricant compatible with the seals and process media; oxygen service requires specially approved materials and procedures.
Operating torque Monitor for a gradual increase in torque or actuator load Increased torque may indicate contamination, pressure-related seat loading, corrosion, misalignment, or seal deterioration.
Seat and seal replacement Replace when leakage, swelling, cracking, deformation, or unacceptable flow drift is confirmed Use replacement materials with the same or better chemical, pressure, and temperature compatibility.
Post-maintenance test Perform a pressure, leakage, functional, and—where required—flow calibration test Return the valve to service only after test results meet the documented acceptance criteria.
Safety and Compliance Pressure hazards Treat every valve as pressurized until isolation and zero-energy verification are complete Follow the site lockout/tagout procedure and wear personal protective equipment appropriate to the process.
Material verification Verify body, trim, seat, seal, and connection materials against the process specification Pay particular attention to oxygen, chlorine, strong oxidizers, aggressive solvents, and hygienic applications.
Applicable standards Select relevant requirements from standards such as ISO 5208, API 598, ASME B16.34, ISO 5211, or local regulations The applicable standard depends on valve construction, pressure class, industry, fluid, and installation location.
Replacement decision Replace the valve when the body is damaged, leakage cannot be corrected, materials are incompatible, or calibration is unstable Do not return a valve to service if its pressure boundary or safety function cannot be verified.

FAQS

: What is a metering ball valve?

: It controls liquid or gas flow through a precision-shaped rotating ball. Small stem movements change the opening area. It is not only an isolation valve. It supports repeatable flow adjustment, although actual results depend on pressure, temperature, and viscosity.

How does a metering ball valve control flow?

Turning the stem rotates the ball inside the valve body. The changing port opening controls the available flow area. Pressure difference pushes the medium through the port. Flow may still vary when fluid conditions change.

Which fluids can use a metering ball valve?

Common examples include water, oil, gas, slurry, and chemical solutions. Each fluid needs suitable body and sealing materials. Thick fluids may move slowly during startup. Particles can also affect sealing and repeatability. Clean water is easier.

How should fluid compatibility be checked?

Record the fluid’s temperature, pressure, viscosity, concentration, and suspended particles. Then compare these conditions with the wetted materials. Check resistance to swelling, corrosion, and temperature changes. A compatibility chart helps, but real-fluid testing remains important.

How do I choose the correct valve size?

Select the size according to required flow and acceptable pressure loss. Do not choose only by matching the pipeline connection. An oversized valve may behave poorly at low flow. An undersized valve may create excessive pressure loss. Pipe size can mislead.

What is an appropriate metering range?

Compare the minimum, normal, and maximum flow requirements. Leave adjustment room above and below normal operation. A valve operating near the closed position may be difficult to control accurately. A narrow range can look efficient on paper, then fail during production changes.

Are V-port or characterized balls better for precise control?

They often provide finer adjustment than a standard full-bore ball. Their shaped openings can make small handle movements more predictable. Still, performance depends on the actual fluid and pressure conditions. A specification sheet alone cannot prove stable low-flow behavior.

What information should be checked before ordering?

Review the flow coefficient, pressure rating, temperature range, connection size, and seal material. Request material data, test results, and service limits. Test leakage, response time, and repeatability when accuracy matters. Record flow at several handle positions. Repeat the test.

Why can a correctly rated valve still perform poorly?

Pressure ratings do not guarantee accurate metering. A valve may pass pressure requirements but struggle with viscous fluid at startup. Changing temperature can alter viscosity and flow. A clean spreadsheet can still mislead. Recheck assumptions before final selection.

Conclusion

Choosing the right Metering Ball Valve begins with understanding how its precision ball-and-seat design regulates fluid flow through controlled rotational movement. Start by identifying the required flow rate, adjustment range, fluid type, temperature, viscosity, and compatibility requirements. These factors help determine the appropriate body, seal, and ball materials, as well as the correct connection size and metering range for stable and repeatable control.

You should also compare manual, pneumatic, and electric actuation according to the required response speed, operating environment, and control system. Pay close attention to flow accuracy, pressure and temperature ratings, and the valve’s ability to perform consistently under actual working conditions. During installation, follow the correct flow direction, prevent contamination, and avoid excessive piping stress. After installation, calibrate the valve at representative operating conditions and establish a maintenance routine that includes inspection, cleaning, seal checks, and performance verification. These steps support safe, efficient, and reliable long-term flow control.
